Overview
- Engine: Cummins ISB 6.7-L diesel engine, typically rated at 200-260 hp.
- Transmission: Allison 2500 PTS 5-speed automatic.
- Suspension: Front leaf spring and rear steel leaf spring, with air suspension available.
- Wheelbase: Various options available, ranging from 169" to 280".

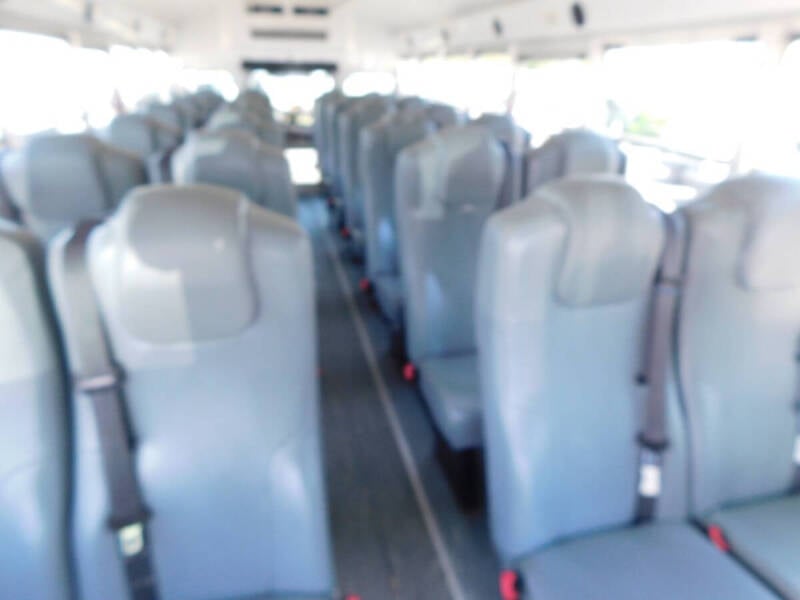

- Passenger Capacity: Can accommodate various seating plans, ranging from 30 to 78 passengers.
- GVWR: Up to 33,000 lbs.
- Dimensions: Exterior length can vary, with some models being 30ft long, and a height of 77".
- Fuel Capacity: Standard 60-gallon tank, with an optional 100-gallon tank available.

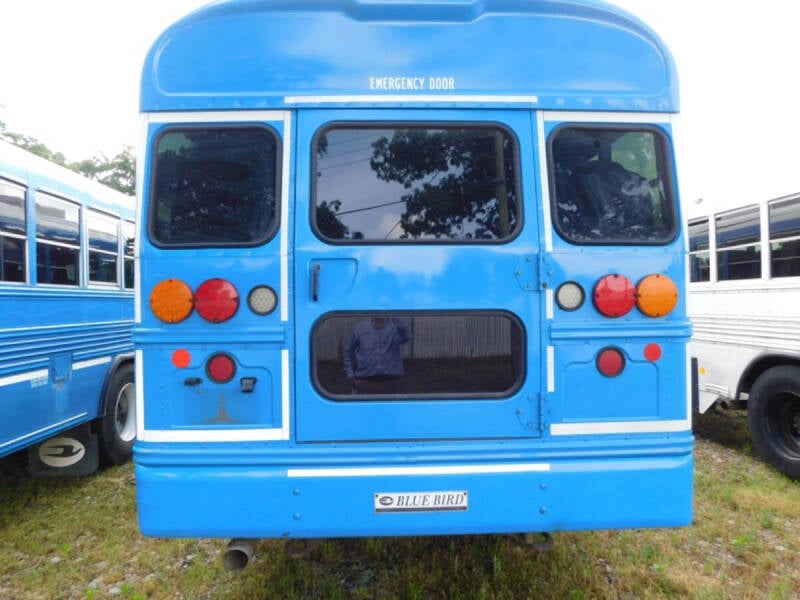

- Doors: Double electric outward-opening front door (27" wide x 78" high), and a rear door (37" wide x 52" high).
- Safety: Features like an extended safety view window for improved driver visibility and emergency exit windows.
- Other features: Air brakes, tinted windows, dual rear wheels, wheelchair lift, and various interior features depending on the specific model.
Length | 309–499 in (7.8–12.7 m) |
Width | 96 in (2.4 m) |
Height | 122–128 in (3.1–3.3 m) |
Curb weight | up to 33,000 lb (14,969 kg) |
